Product Description
24v hydraulic operator
Our Sub 24v hydraulic operator is suitable for very intensive use and for any type of residential, industrial or multi-residence application. Compact and sturdy, it can automate swing gate leaves up to 2.5m wide and weighing up to 800kg. Fitted with mechanical stops and virtual encoder, providing maximum anti-crushing safety with the electronic slowdown and D-Track system.

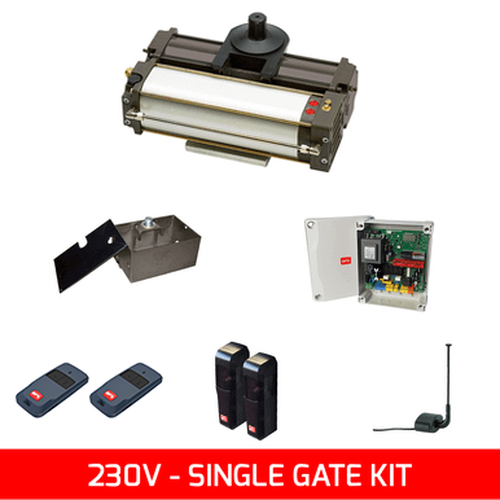

Included in the kit:
- 1x Sub BT operator
- 1x Thalia Light control panel & receiver
- 2x Mitto radio transmitters
- 1x Pair of Compacta 180° photocells
- 1x Radio antenna
If you'd like to customise your kit, please call your local BFT office to place your order.
Installation is simple and the control board is U-Link compatible. Download our installation manual for further information.
| SUB BT | |
| Power supply | 24V |
| Gate leaf length |
2m (self-locking) 2.5 (electric lock required) |
| Max leaf weight | 800kg |
| Control panel | THALIA |
| Cycle time | 9° per sec |
| Impact reaction | D-Track |
| Protection rating | IP67 |
| Temperature range | -20°C to 60°C |
| Frequency of use | Very intensive |
