Product Description

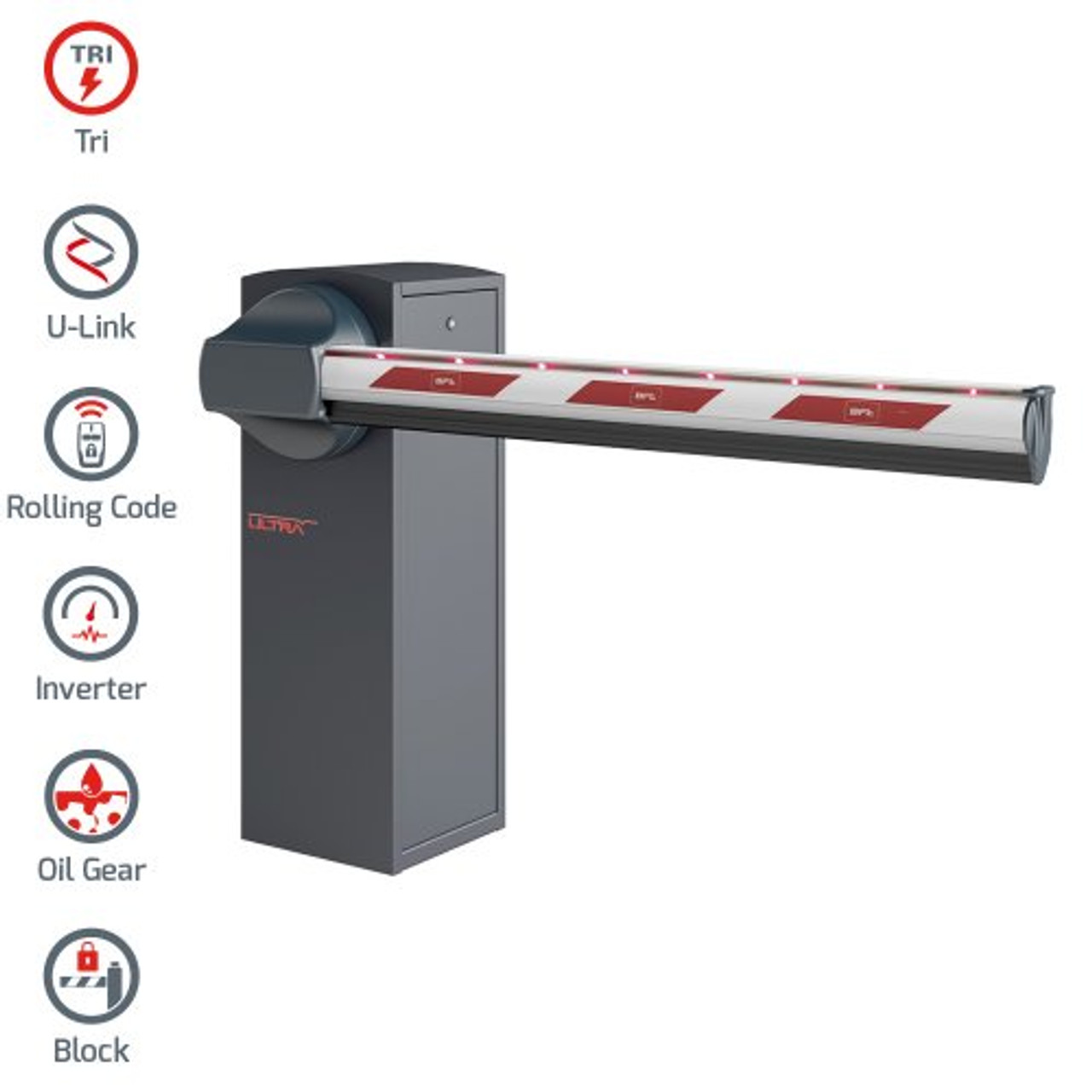

230v Automatic Barrier
The Maxima Ultra 68 automatic barrier kit is a multi-purpose heavy system suitable for car parks, industrial sites, tolls and many other large scale secure sites. With a drive through gap of between 4 to 8 metres, the Maxima Ultra is an adaptable yet robust electromechanical barrier system. It is capable of operating in adverse weather and temperature environments.
The entire barrier system is also compatible with BFT’s U-LINK system, allowing you to link all the automation products into a single PC-based control platform. The Maxima Ultra 68 is powered by the BFT CSB-Xtreme, a control panel dedicated to serving three-phase motor-powered barriers.
Hard-Wearing
- Capable of 30,000 cycles per day
- Robust metal outer casing
- Handles temperature extremes from -30 to +60 degrees
- IP54 level protection
Secure
- Single crank machine mechanism
- Mechanical locking system
Intelligent
- Impact reaction for opening and closing
- U-link compatible
- Integrated heater for low temperatures
Included in kit:
1x Maxima barrier
C/W Internal control panel & inverter
1x Boom inc. fixing bracket
1x Rubber buffer
1x Strengthening kit
1x Fixed rest or swinging leg
Please call your local BFT office to place your order.
Download our installation manual for further information.

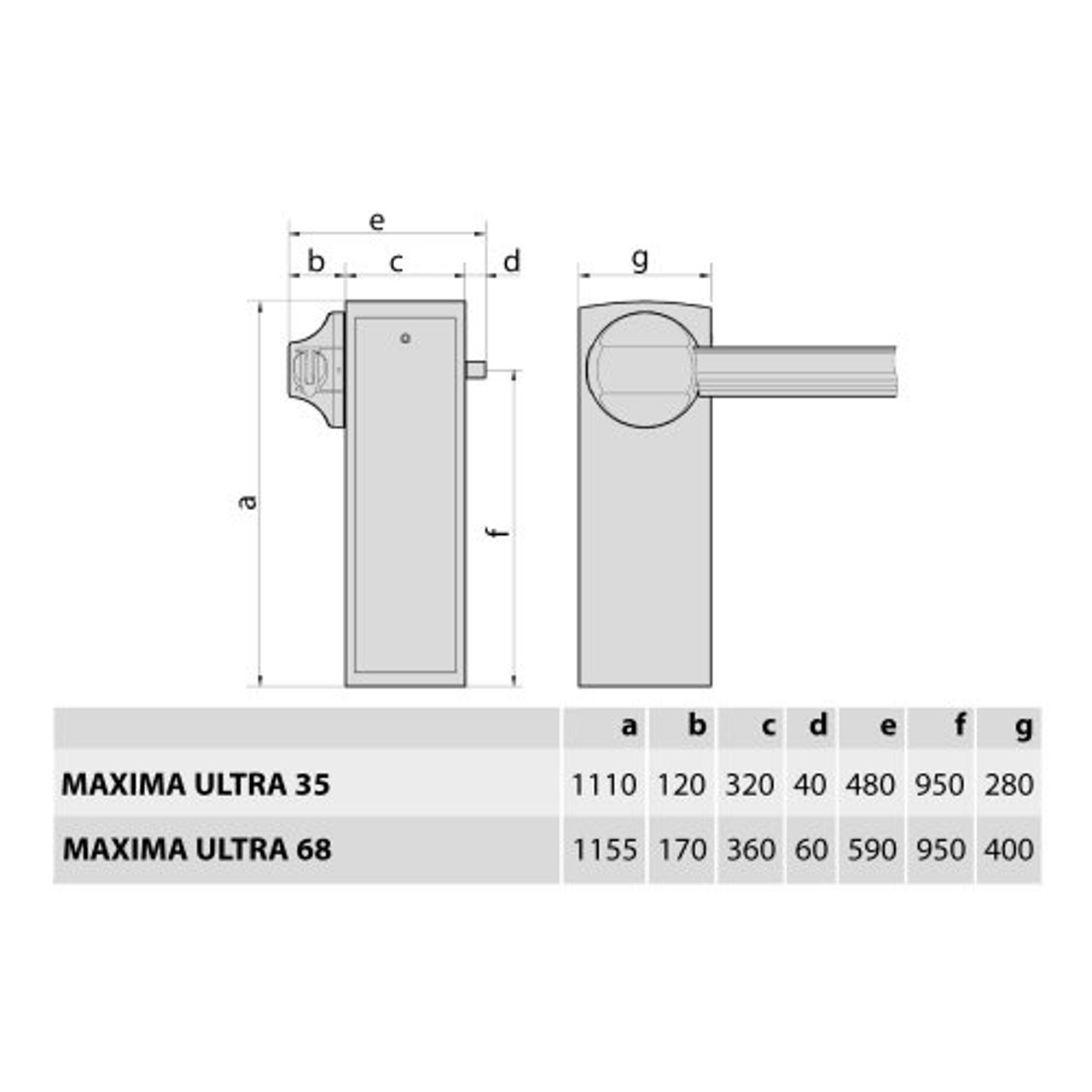

Compare the range:
| MAXIMA ULTRA 35 | MAXIMA ULTRA 36 |
MAXIMA ULTRA 68 |
|
| Useful Passage | 1.7m to 5m | 2m to 6m | 4m to 8m |
| Frequency of use | 20000 op/day (up to 3m) 5000 op/day (up to 5m) |
20,000 (@3 m), 5,000 (@6 m) movements per day | 30000 op/day |
| Opening or closing | 0.7 - 3sec | 0.7 - 3.9 seconds | 4.5 - 6 seconds |
| Control unit | CSB Xtreme | CSB Xtreme | CSB Xtreme |
| Motor type | three phase induction | asynchronous three-phase motor | three phase induction |
| Gear unit type | in oil bath | in oil bath | in oil bath |
| MCBF (Mean cycles between failure) | 5,000,000 Op | 7,000,000 movements | 2,000,000 Op |
| Motor power supply | 230v | 230v | 230v |
| Slowdown | in opening and closing | soft opening and closing | in opening and closing |
| Impact reaction | encoder | encoder | encoder |
| Lock | mechanical | mechanical | mechanical |
| Release | inside the structure | inside the structure | inside the structure |
| Ambient conditions | -30°C +6°C | -40°C +60°C | -30°C + 6°C |
| Protection rating | IP54 | IP54 | IP54 |
