Product Description

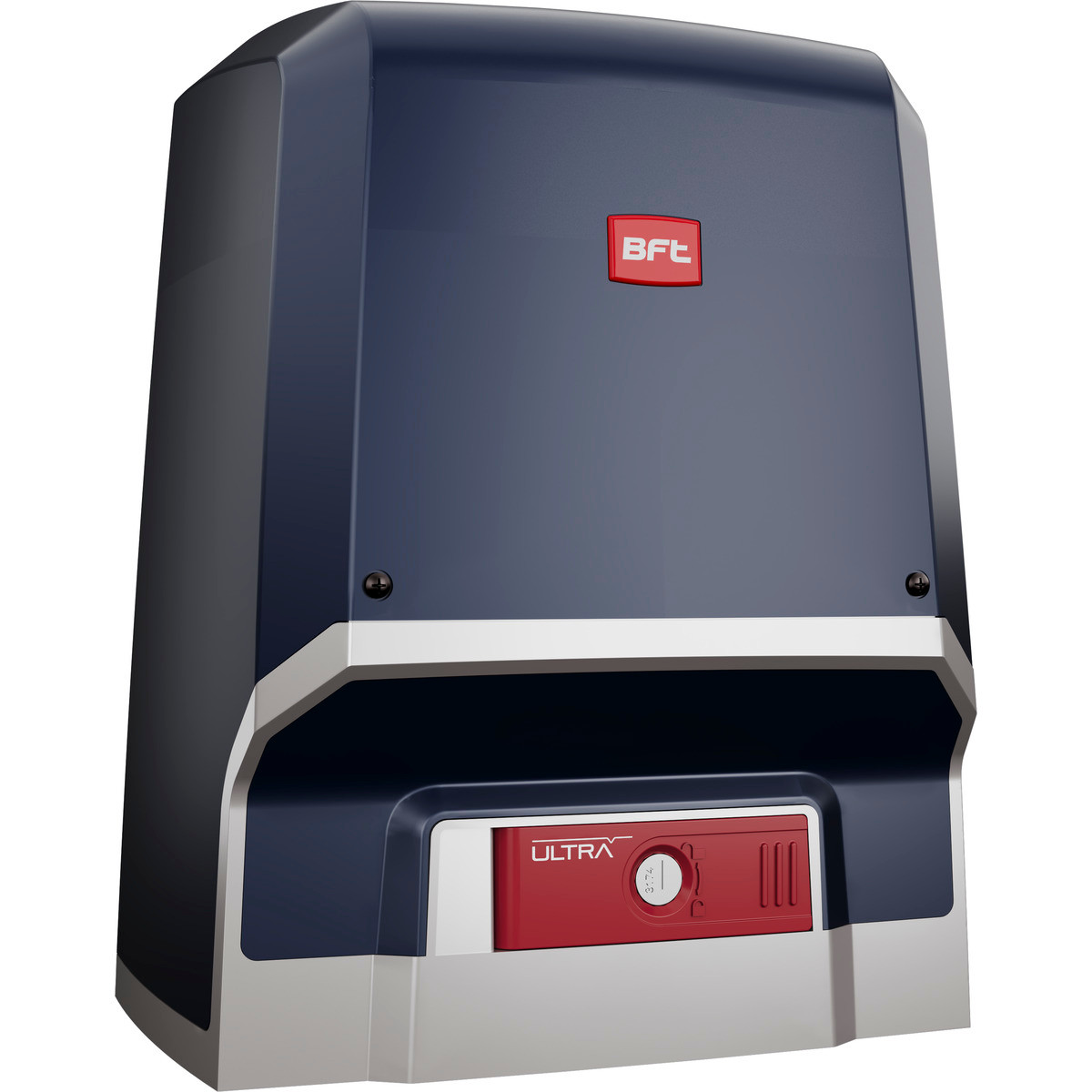

24v Automatic Sliding Gate Operator Kits
The Ares Ultra BT range holds two 24v automatic sliding gate operators, which are both available in kits. The Ares Ultra BT A1000 is suited to gates weighing up to 1000kg and the Ares Ultra BT A1500 suited to gates weighing up to 1500kg, both equipped with a leaf speed of 9m/min. Featuring a magnetic limit switch and built-in obstable detection through the D-Track system both of these gate operators are suited for long-lasting intensive use.
Included in the kit:
- 1x Ares Ultra BT A 24v sliding gate motor
- C/W Internal control panel
- 2x Mitto radio transmitters
- 1x Pair of Compacta 180° photocells
- 1x Radio antenna
- 4x 1m CVZ Toothed drive rack
If you'd like to customise your kit, please call your local BFT office to place your order.
Installation is simple and the control board is U-Link compatible. Download our installation manual for further information.
| Ares Ultra BT A1000 | Ares Ultra BT A1500 | |
| Power supply | 24V | 24V |
| Max leaf weight | 1000kg | 1500kg |
| Control panel | MERAK-ARES | MERAK-ARES |
| Gate speed | 9m/min | 9m/min |
| Impact reaction | D-Track | D-Track |
| Frequency of use | Intensive | Intensive |
